The HOBOY’s Fluke 709H Loop Calibrator with HART Communication is a versatile and reliable tool for calibrating and troubleshooting process loops in industrial settings. This rugged and durable calibrator is designed to make your job easier and more efficient.

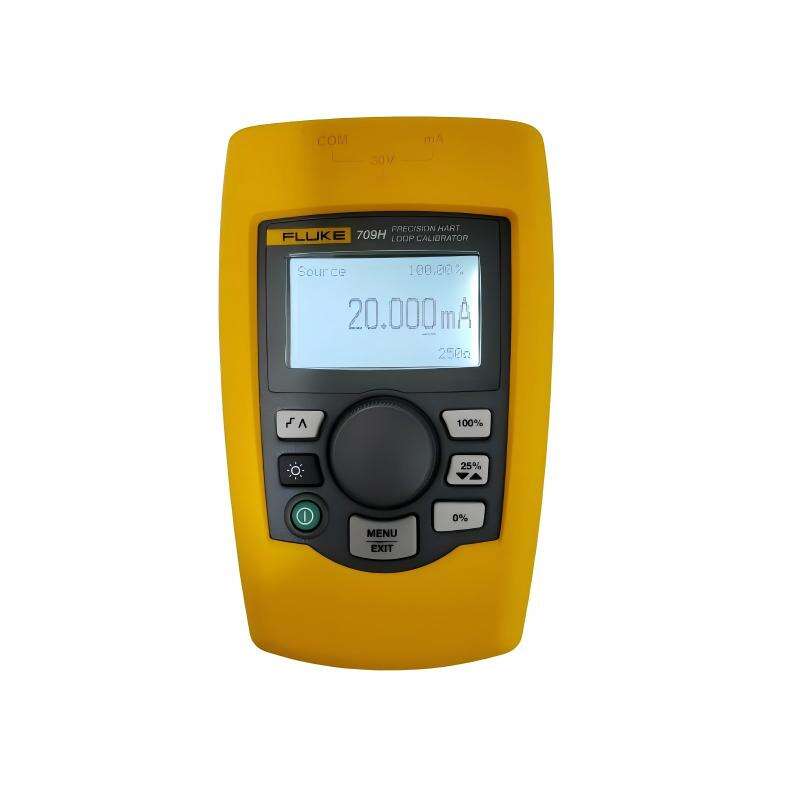

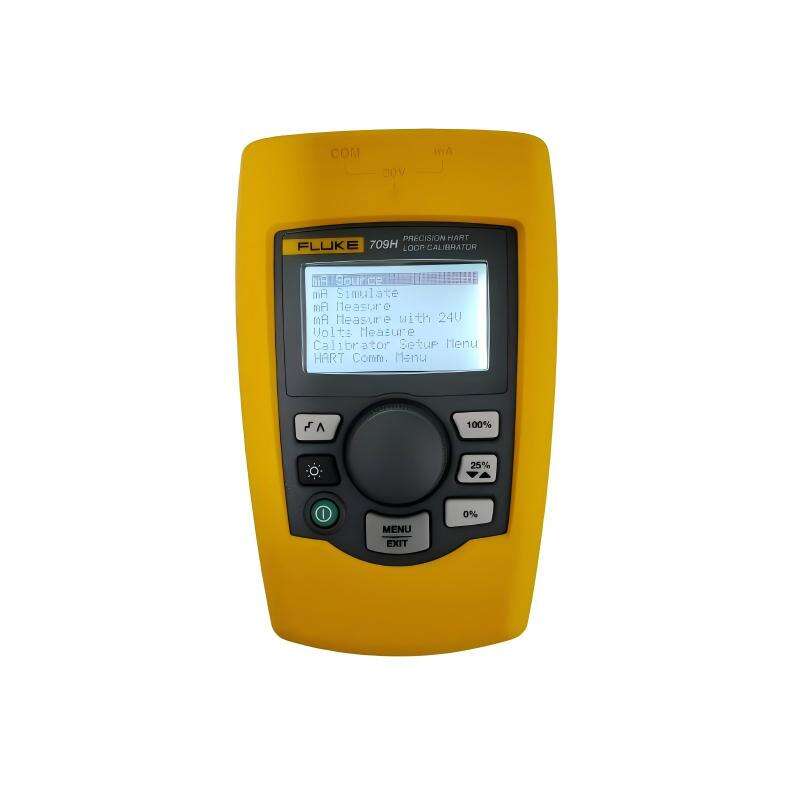

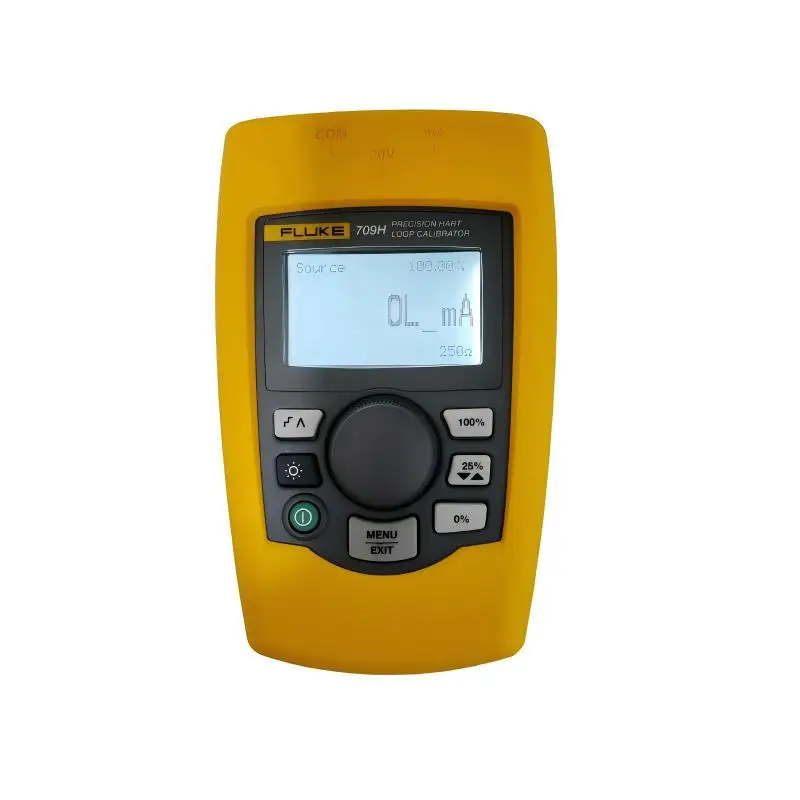

The Fluke 709H Loop Calibrator is easy to use, with a large, intuitive display and simple navigation buttons. With its HART communication capabilities, it can communicate with HART-enabled devices, making it a valuable tool for troubleshooting and configuring instrumentation in the field.
This calibrator offers a wide range of measurement and sourcing capabilities, allowing you to calibrate a variety of devices with precision. It can source and measure mA signals, as well as simulate and measure various types of resistance. With its accuracy and reliability, you can trust that your calibrations will be done right the first time.
The HOBOY’s Fluke 709H Loop Calibrator is also built to withstand harsh industrial environments. Its rugged design and durable construction ensure that it can handle the rigors of daily use in the field. Whether you're working in a chemical plant, oil refinery, or other industrial setting, this calibrator will stand up to the demands of your job.
In addition to its performance and durability, the Fluke 709H Loop Calibrator offers convenience and flexibility. It is battery-powered, so you can take it anywhere without worrying about finding a power source. Its compact size and lightweight design make it easy to carry and use, even in tight spaces.
The HOBOY’s Fluke 709H Loop Calibrator with HART Communication is a reliable and versatile tool for calibrating process loops in industrial settings. Its accuracy, durability, and convenience make it a valuable asset for technicians and engineers who need to ensure the proper functioning of process instrumentation. Whether you're calibrating transmitters, valves, or other devices, this calibrator will help you get the job done quickly and efficiently
Functions |
mA source, mA simulate, mA read, mA read/loop power, and volts read |
Ranges |
mA (0 to 24mA) and Volts - 0 to 30VDC |
Resolution |
1 µA on mA ranges and 1 mV on voltage range |
Accuracy |
0.01% +/- 2 counts, all ranges - @23° +/- 5°C |
Operating Temperature Range |
-10 to 55 °C or 14 to 131°F |
Humidity Range |
10 to 95% non-condensing |
Stability |
20 ppm of F.S. /°C from -10 to 18°C and 28 to 55°C |
Display |
128 x 64 pixels, LCD Graphic w/backlight - 0.34 high digits |
Power |
6 AAA alkaline |
Battery Life |
40 hours typical |
Loop Compliance Voltage |
24VDC @ 20mA |
Over-Voltage Protection |
240 VAC |
Overload Current Protection |
28 mA DC |
Dimensions (L x W x D) |
15 cm x 9 cm x 3 cm or 6 x 3.6 x 1.3 |
Weight |
0.3 kg - 9.5 ounces |
