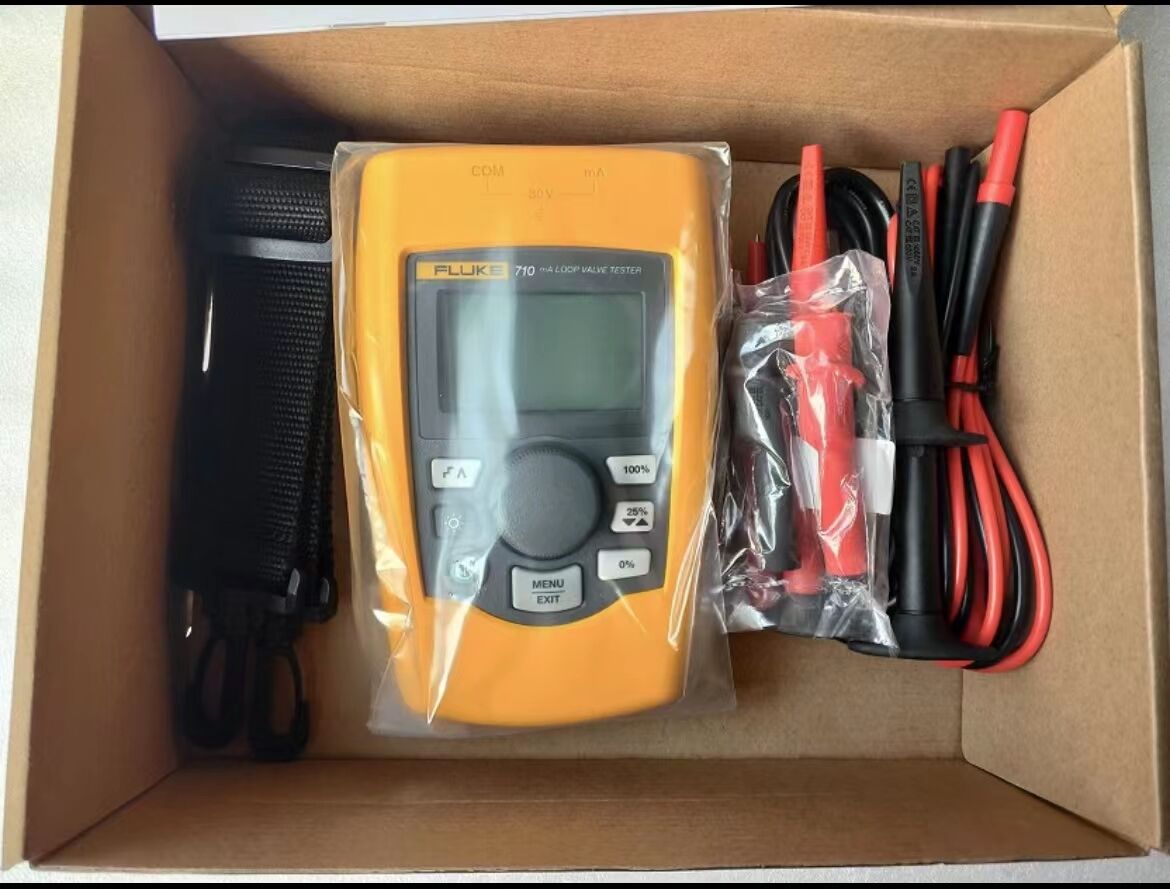

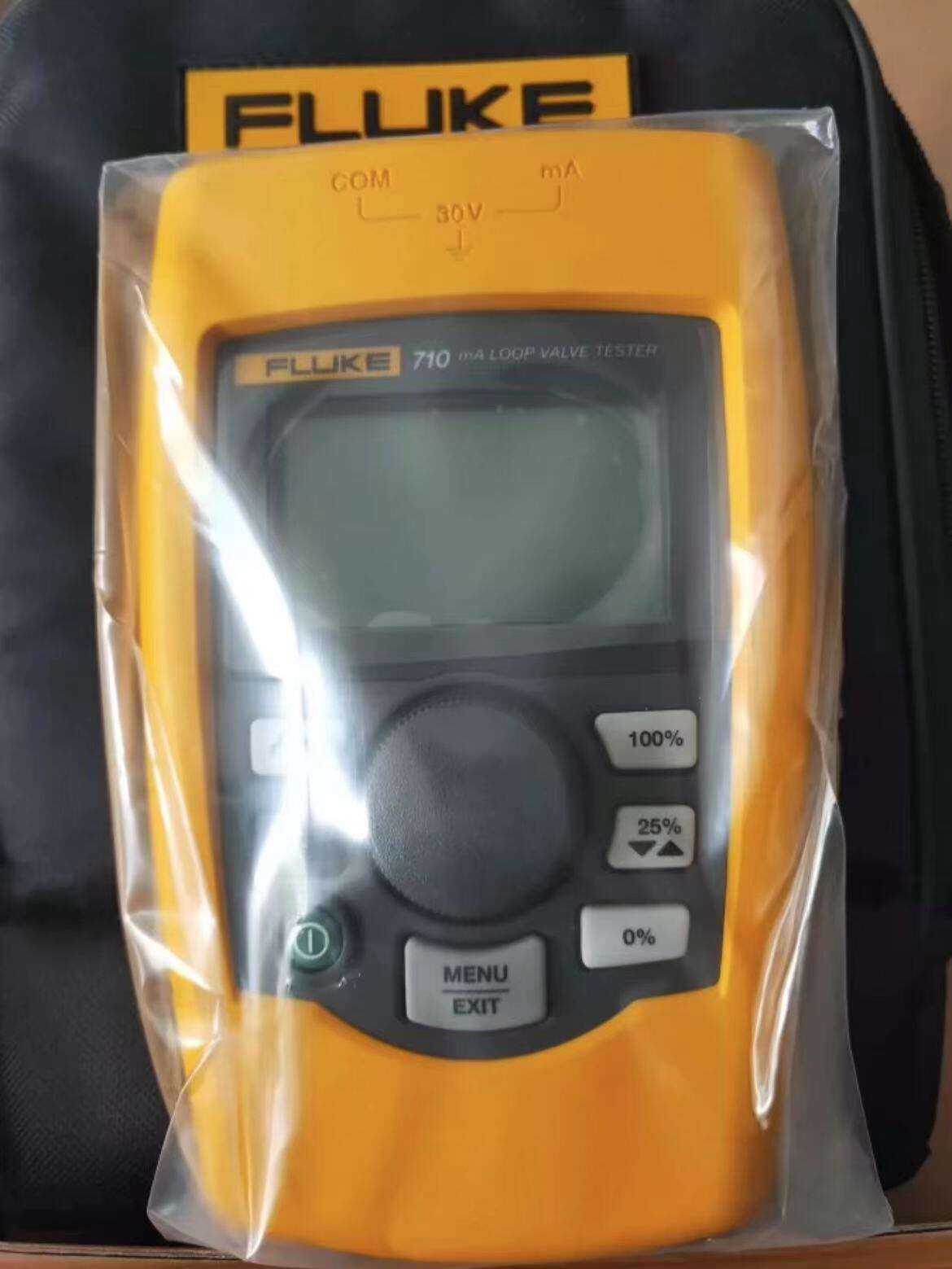

Introducing, the Fluke 710 MA Loop Valve Tester Multifunctional Tester, brought to you by the trusted brand HOBOY. This innovative tester is a must-have tool for any technician working with control loops or control valves.
The Fluke 710 MA Loop Valve Tester is designed to provide accurate and reliable measurements for valve position, pressure, and current loop signals. With its multifunctional capabilities, this tester allows users to quickly and easily diagnose issues with control valves and loops, saving time and increasing efficiency.
This original Fluke tester is built to last, with a rugged design that can withstand the demands of industrial environments. Its compact size and lightweight construction make it easy to carry from job to job, while the intuitive interface allows for simple operation by technicians of all levels.
With the Fluke 710 MA Loop Valve Tester, users can perform quick and accurate diagnostics on control loops and control valves. The tester features a built-in 24 V loop power supply, allowing for easy testing of 4-20 mA signals without the need for an external power source.
Users can also take advantage of the built-in HART communication capabilities, allowing for advanced diagnostics and configuration of HART-enabled devices. This feature sets the Fluke 710 MA Loop Valve Tester apart from other testers on the market, making it a valuable tool for technicians working with modern control systems.
Whether you're a seasoned professional or just starting out in the field, the Fluke 710 MA Loop Valve Tester is a versatile and reliable tool that will help you get the job done right the first time. With its original design and innovative features, this tester is sure to become an essential part of your toolkit.
Don't settle for anything less than the best when it comes to diagnosing and troubleshooting control loops and control valves. Invest in the Fluke 710 MA Loop Valve Tester from HOBOY today and experience the difference for yourself
Functions |
mA source, mA simulate, mA read, mA read/loop power, and volts read |
Ranges |
mA (0 to 24 mA) and Volts - 0 to 30 V dc |
Resolution |
1uA on mA ranges and 1mV on voltage range |
Accuracy |
0.01% ±2 counts all ranges @ 73.4°F ±41°F [23°C ±5°C |
Operating Temperature Range |
14 to 131°F or -10 to 55°C |
Humidity Range |
10 to 95% non-condensing |
Stability |
20 ppm of F.S./°C from -10 to 18°C and 28 to 55°C |
Display |
128 x 64 pixels, LCD graphic w/backlight - 0.34 in high digits |
Power |
6 x AAA alkaline |
Battery Life |
≥40 hours continuous use - measure mode using alkaline |
Loop Compliance Voltage |
24 V dc @ 20 mA |
Voltage Protection |
240 V ac |
Overload Current Protection |
28 mA dc |
EMC |
EN61326 Annex A - portable instruments |
Dimensions |
6 x 3.6 x 1.3" - 15 x 9 x 3 cm |
Weight |
0.3 kg - 9.5 oz |
