Product Description

Ideal for troubleshooting transmitters, valves, and programmable logic controllers (PLCs) found in process plants. This meter measures 4 to 20 mA signals without breaking the loop, which allows it to troubleshoot a live device without having to power down. Additionally, users can detach the clamp section of the meter.

Fluke 773 Milliamperes Process Clamp Meter 771 772 Digital Clamp Meter manufacture

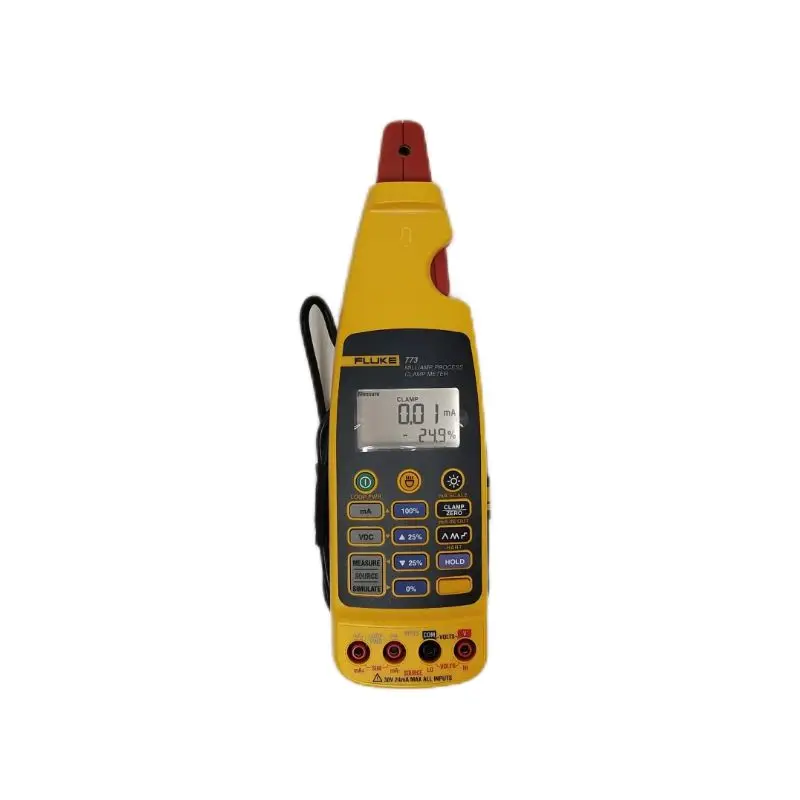

773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure
* Best in class 0.2 % accuracy
* 0.01 mA resolution and sensitivity
* Measure 4 to 20 mA signals without ”breaking the loop”
* Measure mA signals for PLC and control system analog I/O
* Dual backlit display with both mA measurement and percent of 4 to 20 mA span
* Measurement Spotlight illuminates hard to see wires in dark enclosures
* Detachable clamp with extension cable for measurements in tight locations
* Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
* Automatically change the 4 to 20 mA output for remote testing

Fluke 773 Milliamperes Process Clamp Meter 771 772 Digital Clamp Meter factory

Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure

* Taking mA measurements by removing a wire and breaking the loop
* Calling the control room to isolate a loop
* Testing analog input/output on a console
* Troubleshooting devices with mA inputs and outputs
* Repairing intermittent or erratic 4-20 mA loops
* Going back to the shop to get extra tools

Fluke 773 Milliamp Process Clamp Meter
* Measures mA Signals for control systems, PLC systems, Analog input output without breaking the loop!!
* Can measure the output signals from transmitters without breaking the loop.
* Comes with detachable clamp. This comes in very handy for tight locations.

Fluke 773 Milliamperes Process Clamp Meter 771 772 Digital Clamp Meter supplier

Specification

Measurement mA (Measured by Clamp)
Resolution/Range	0 to 20.99 mA
Accuracy	0.2% + 5 counts
Resolution/Range	21.0 to 100.0 mA
Accuracy	1% + 5 counts
Measurement mA (Measured in Series with Test Jacks)
Resolution/Range	0 to 24.00 mA
Accuracy	0.2% + 2 counts
Source mA (Maximum mA Drive: 24 mA into 1000 Ω)
Resolution/Range	0 to 24.00 mA
Accuracy	0.2% + 2 counts
Simulate mA (Maximum Voltage 50 V DC)
Resolution/Range	0 to 24.00 mA
Accuracy	0.2% + 2 counts
Voltage Source (2 mA Maximum Drive Current)
Resolution/Range	0 to 10.00 V DC
Accuracy	0.2% + 2 counts
Voltage Measure
Resolution/Range	0 to 30.00 V DC
Accuracy	0.2% + 2 counts
General Specifications
Diameter of Measurable Conductor	0.177" (4.5 mm) max
Operating Temperature	14 to 122°F (-10 to 50°C)
Storage Temperature	-13 to 140°F (-25 to 60°C)
Operating Humidity	<90% at <86°F (30°C) <75% at 86 to 131°F (30 to 55°C)
Operating Altitude	0 to 6561.7' (0 to 2000 m)
Dimensions	27⁄8 x 5¾ x 115⁄8" (44 x 70 x 246 mm)
Weight	0.9 lb (410 g)
IP Rating	IP 40

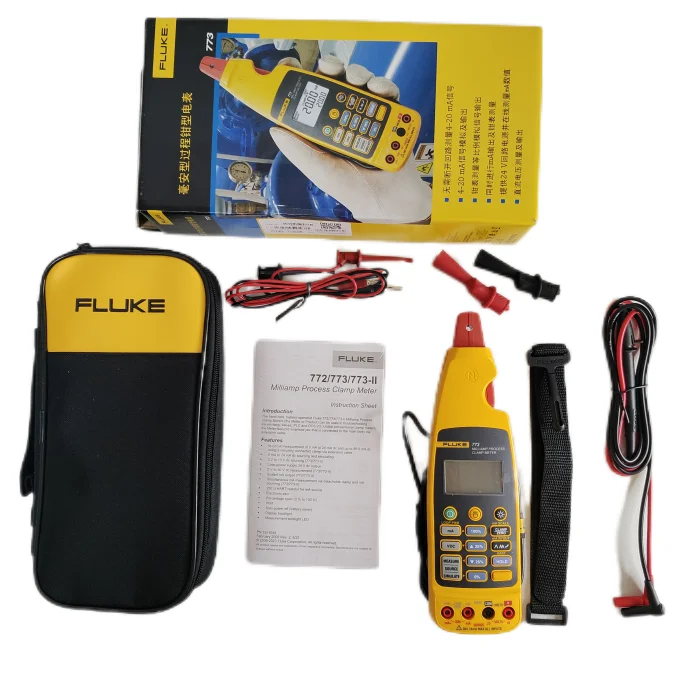

Packing & Delivery
