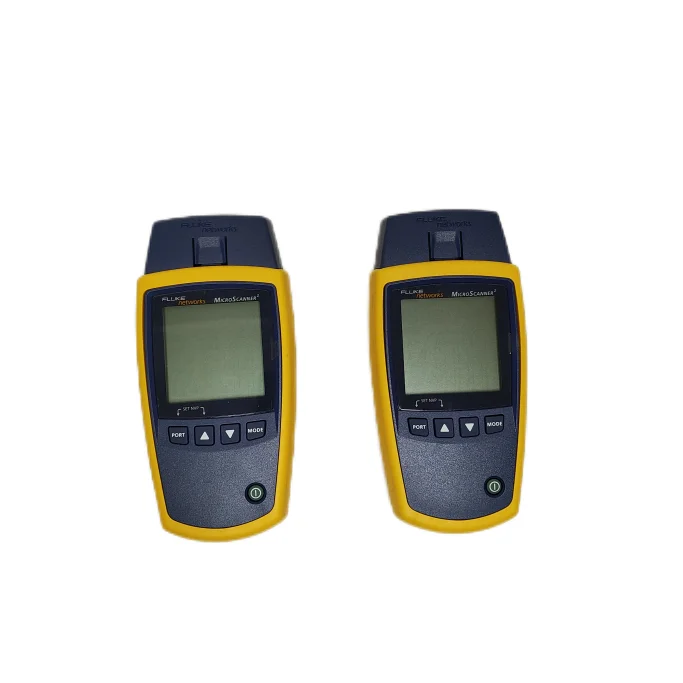

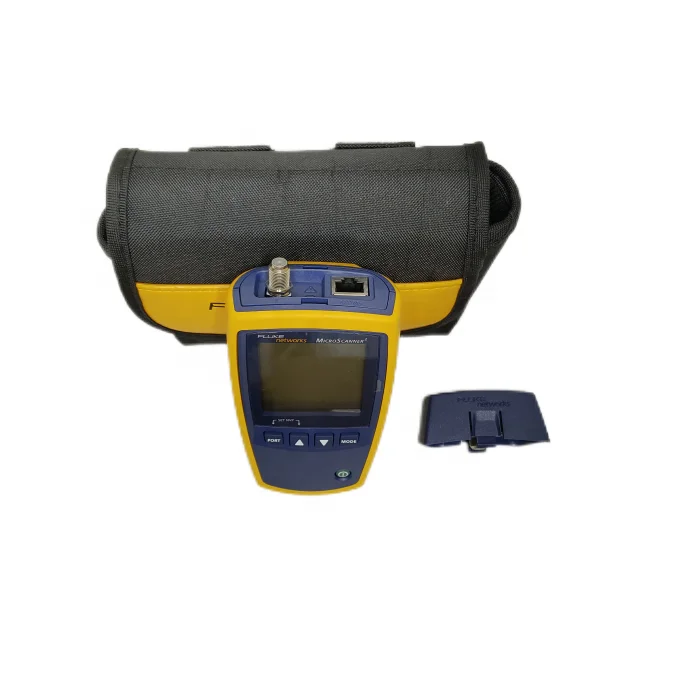

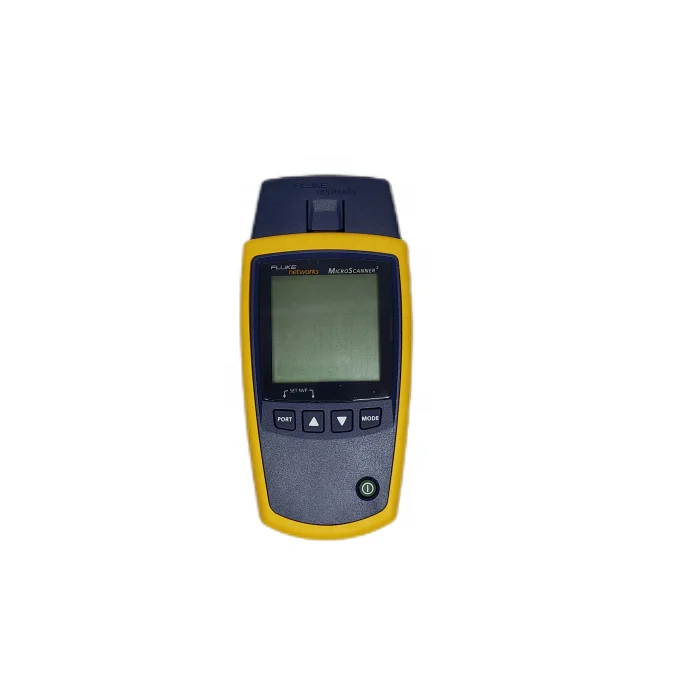

Fluke MS2-100 MicroScanner2 Cable Verifier

Fluke MS2-100 MicroScanner2 Cable Verifier

Product Description

Verify terminations and troubleshoot continuity faults while reduce test time and user error with this cable verifier.

Fluke Networks MS2-100 MicroScanner2 Cable Verifier
* Displays cable length, wiremap, cable ID, and distance to fault on one screen.
* Detects today's media services, including 10/100/1000 Ethernet, POTS, and PoE
* Locates virtually any cable or wire pair with IntelliTone digital and analog toning
* Tests all common media types, including RJ11, RJ45, Coax, with no adapters
* Rubber over mold enhances grip and increases ruggedness
* "Oversized" backlit LCD makes results crystal clear in any work environment

MS2-100 MicroScanner2 Cable Verifier

Streamline verification testing * The MicroScanner2 Cable Verifier presents a revolutionary change in voice, data, and video cable testing.
* It starts by taking results from what was four different test modes and displaying them all at
once – graphical wiremap, pair lengths, distance to fault, cable ID, and far end device.
* It's integrated RJ11, RJ45, and coax cable test ports support virtually any type of low-voltage
cable testing with no need for awkward adapters.
* The end result is reduced test time and technician error. That makes high-quality installations
more efficient than ever.

Eliminate awkward test adapters

Tired of losing or breaking all the adapters needed for testing the various voice, data, and video
media types? MicroScanner2 makes these adapters things of the past with builtin RJ11, RJ45, and coax support. Both the main unit and the far-end identifiers can be used to test telephone jacks, Ethernet jacks, and CATV outlets right out of the box.

Rule out service problems fast

Today’s communications technicians have more problems to deal with than just the cabling. They have to rule out a whole host of cable and service issues before determining the cause of a connectivity problem. Is there telephone voltage? What’s the polarity? Is there a switch at the far end? Is PoE available? MicroScanner2 gives technicians high power vision to verify today’s most common voice, data, and video services.

Fluke MS2-100 MicroScanner2 Cable Verifier details

Specification

Test Connectors	Twisted-pair: UTP, FTP, SSTP 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs Coax: F-connector for 75 Ω, 50 Ω, 93 Ω cables
Cable Tests	Length (460 m or 1500 ft. with resolution to 0.3 m or 1 ft.), wiremap to TIA-568A/B standards, remote ID locators; displays results on one screen
Tone Generator	IntelliTone digital tone: [500 KHz]; analog tones: [400Hz, 1KHz]
PoE Detection	Solicits and detects the presence of 802.3af compatible PoE (Power over Ethernet) devices
Ethernet Port Test	Advertised speed of 802.3 Ethernet ports (10/100/1000)
Power Source	Battery type: 2 AA (NEDA 15A, IEC LR6) alkaline batteries Battery life: 20 hours of typical use Other compatible battery types: 2 AA photo lithium, NIMH, NICAD
Dimensions	3 in x 6.4” x 1.4 in (7.6 cm x 16.3 cm x 3.6 cm)
Weight	0.8 lbs. (363 grams)
Display	Monochrome liquid crystal display (LCD) with backlight
Calibration	User-configurable NVP for twisted pair and coax; determines actual NVP with known length of cable
Operating Temperature	32 to 113°F (0 to 45°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Operating Humidity (%RH without condensing)	90% (50 to 95°F; 10 to 35°C) 75% (95 to 113°F; 35 to 45°C)
Shock Vibration	Meets requirements for MIL-PRF-28800F for Class 2 random vibration; 1 m drop test with and without wiremap adapter attached
Safety	EN 61010-1 2nd Edition
Altitude	4000 m; Storage: 12000 m
EMC	EN 61326-1
Agency Certifications	N10140 C-Tick EMC standard; FCC Part 15 Class A; CE European Union Directives Pollution Degree 2
Warranty	One year

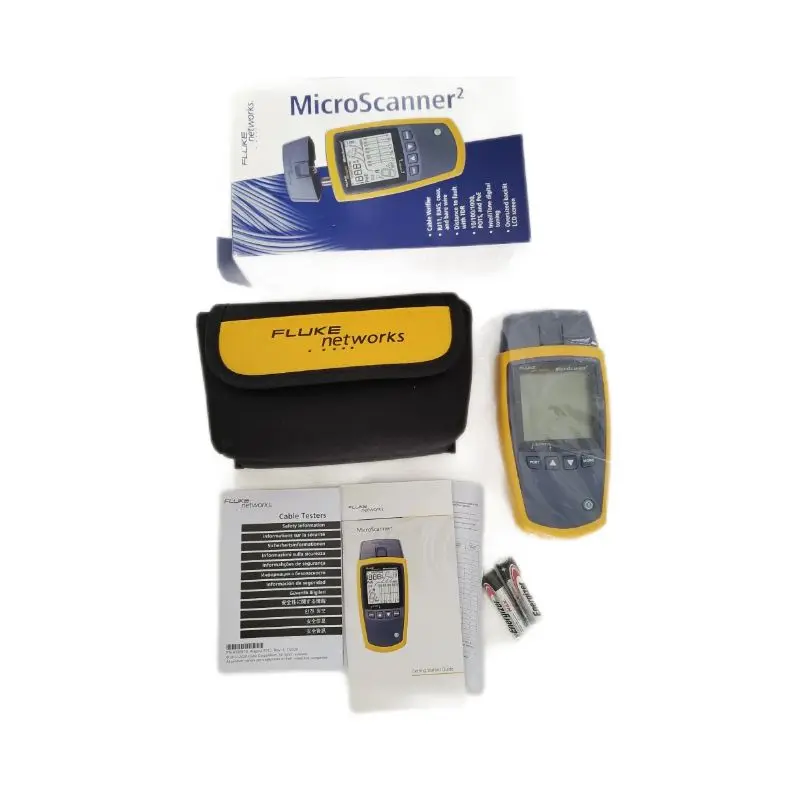

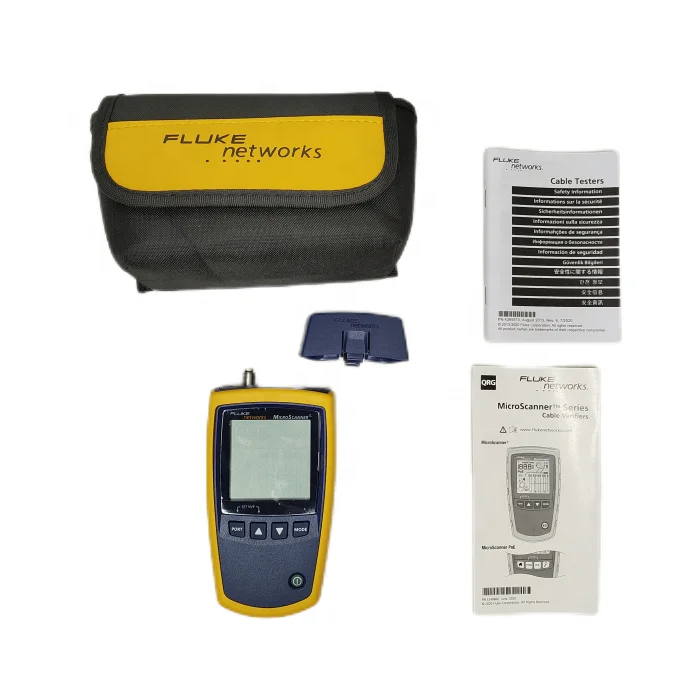

Packing & Delivery
